2023 Aprilia Ohvale RS 250 SP 2

Technical data RS250 SP-2:

Engine:

• Aprilia Racing liquid-cooled 4-valve, 4-stroke engine
• Double overhead camshaft (DOHC)
• Bore x Stroke: 77mm x 53.6mm
• Displacement: 249.2 cc

Power:

• RS250 SP2: 35.5 HP (26.1 KW) at 10500 rpm

Torque:

RS250 SP2: 24 Nm at 8000 rpm

• CDI ignition
• Electric starter
• Fuel supply / Carburretor:

• RS 250 SP2: Dell’Orto PHM 40 carburettor with Sprint racing air filter

Transmission: 6-speed

Clutch:

• FCC multi-disc clutch in oil bath (optional: anti-hopping clutch)

Frame / chassis

• Aluminum bridge frame

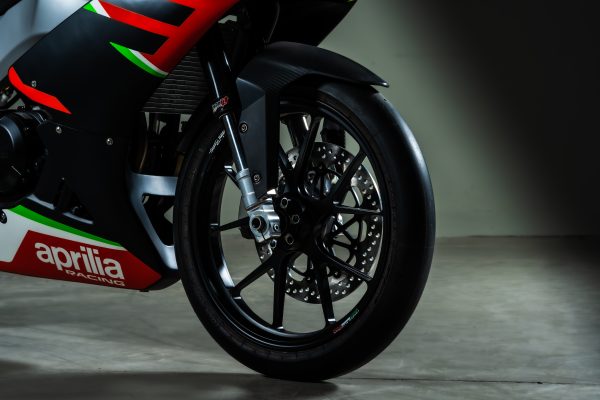

Front suspension:

• 40mm upside-down suspension fork
• Andreani cartridge with adjustable spring preload, hydraulic compression and rebound
• Suspension travel 110 mm

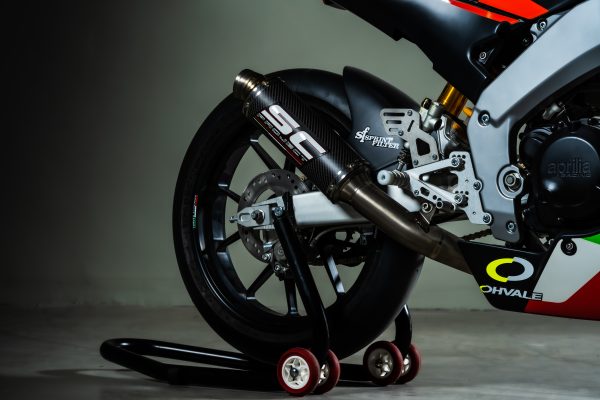

Rear suspension:

• Aluminum swingarm
• Öhlins monoshock damper with reservoir
• Adjustable spring preload, rebound and compression
• Suspension travel (wheel travel) 110 mm

Brake System:

BREMBO front brake

• Brembo M50 4-piston monobloc radial calipers
• Piston diameter: 30 mm
• Brembo 300 mm racing brake disc, floating with aluminum spider
• Brembo radial master cylinder RCS 14 x 18/20
• Steel braided brake line.

BREMBO rear brake

• Brembo 2-piston caliper
• Piston diameter: 32mm
• Brake disc 190 mm, stainless steel
• Brembo brake pump with integrated reservoir
• Steel braided brake line

Wheels:

Flies Marchesini

• Marchesini forged aluminum alloy wheel
• Front: 2.5″ x 17″
• Rear: 3.5″ x 17″

Pirelli Tyres

Front: Pirelli Diablo 100/70 R 17 NHS TL – SC1

Rear: Pirelli Diablo 120/70 R 17 NHS TL – SC1

Dimensions:

• Maximum length: 1907 mm
• Maximum width: 700 mm
• Maximum height (to windscreen): 1135 mm
• Seat height: 790 mm
• Wheelbase: 1315mm

Weight:

• 105 kg (dry weight)

Tank capacity:

• 9 liters
